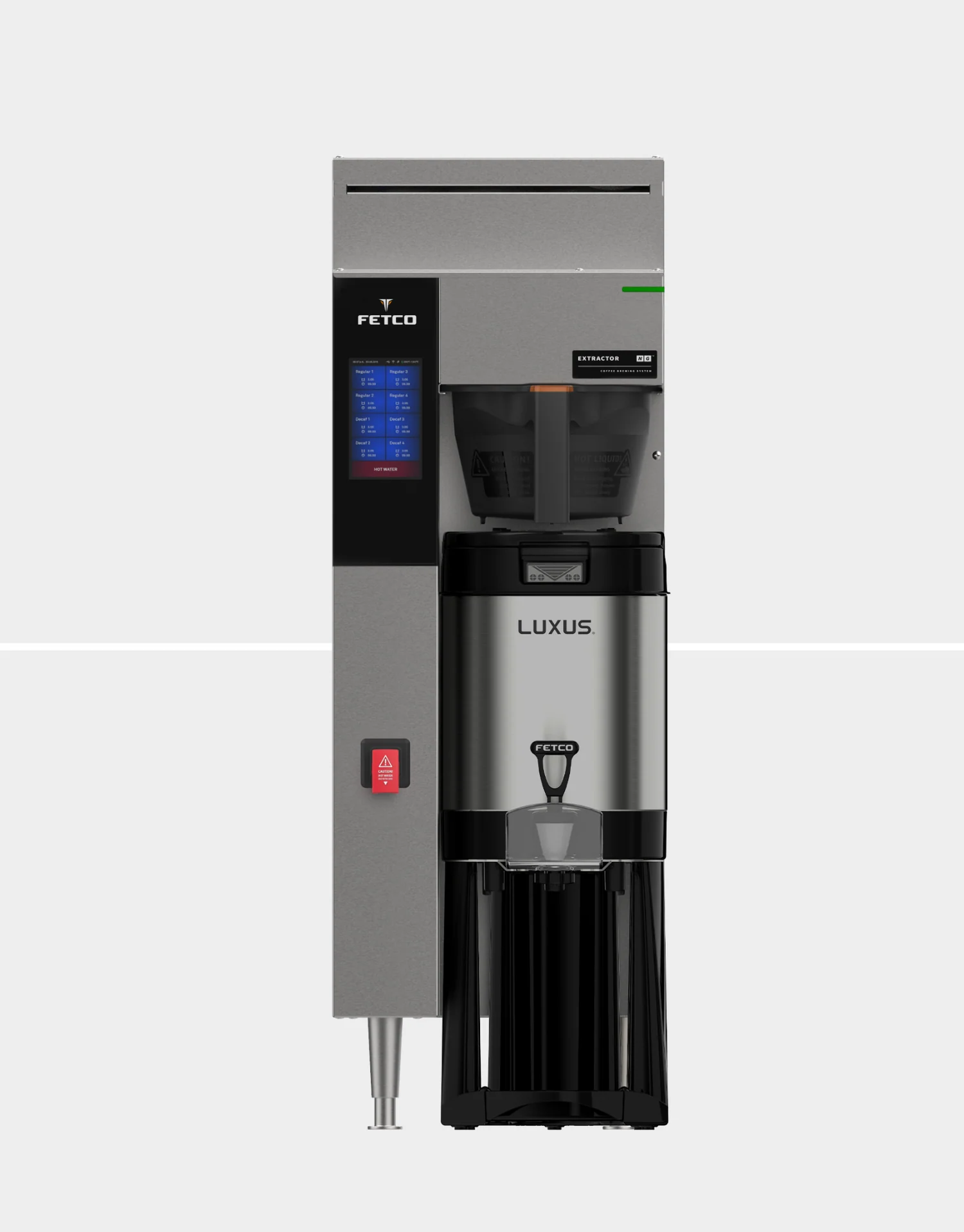

Fetco CBS-2241 NG Single Station Coffee Brewer – 1.0G Plastic Brew Basket (Dual Voltage)

The Fetco CBS-2241 NG (E2241US-1X117-PA011) is a versatile single station coffee brewer designed for commercial environments that require flexibility and consistent results. With dual voltage capability (120V or 208-240V), this model adapts easily to a variety of installation requirements, making it ideal for hotels, cafeterias, restaurants, and catering operations. Its 1-gallon brewing capacity and advanced Extractor® brewing system ensure every batch is brewed to optimal flavor and strength.

This brewer features a durable plastic brew basket with a deep bed design for effective extraction and excellent heat retention. The capacitive touchscreen interface provides intuitive control over brew settings, while the Cascading Spray Dome® ensures even water distribution for consistent results. Safety features such as brew basket sensors and locks prevent operation unless the basket is properly inserted. The brewer also includes an automatic hot water faucet and an LED brew status indicator.

Built for durability and ease of use, the CBS-2241 NG offers a laser-welded tank, USB port for software updates and recipe management, and front panel access for simplified maintenance. ECO mode reduces energy consumption during idle periods. Certified by UL and NSF, this brewer meets high standards for commercial safety and reliability.

Key Features

• Dual voltage operation: 120V or 208-240V for installation flexibility
• Capacitive touchscreen for intuitive programming
• Extractor® brewing system with Cascading Spray Dome®
• Plastic brew basket with deep bed design and thermal insulation
• Brew basket sensors and locks for safety
• Automatic hot water faucet for tea and other beverages
• LED brew status indicator
• ECO mode for energy efficiency
• Laser-welded tank for durability
• Front panel access for easy maintenance
• USB port for software updates and recipe management

Technical Specifications

• Model: E2241US-1X117-PA011 (CBS-2241 NG Series)
• Brew Capacity: 1.0 gallon (up to 145 8oz cups/hour)
• Tank Capacity: 4.10 gallons (15.5 liters)
• Dimensions (W x D x H): 11.75" x 20.5" x 34.5"
• Shipping Weight: 50 lbs (23 kg)
• Voltage: Dual voltage 120V or 208-240V, 1 x 1.7 kW or 2 x 1.7 kW, Single Phase, 2+G/3+G
• Max Amp Draw: 14.7
• Plug: NEMA 5-15P (120V cord included; 208-240V requires hard wiring)
• Water Connection: 3/8" male flare, automatic fill
• Water Pressure Requirement: 20-75 psig
• Minimum Flow Rate: 1.5 gpm
• Filter Size: 13" x 5"
• Certifications: UL, NSF

What’s Included

• Fetco CBS-2241 NG Single Station Coffee Brewer
• Plastic brew basket
• Brewer legs
• 3/8" male flare fitting adapter
• 120V power cord and NEMA 5-15P plug (included for 120V use)

Warranty

Circuit Boards: 3 years parts, 1 year labor
Electromechanical Parts: 2 years parts, 1 year labor
All Other Parts: 1 year parts and labor
Accessories and Dispensers: 1 year parts only
Support: Contact Fetco for warranty claims and service.

This brewer is a practical solution for businesses seeking flexible installation and consistent coffee quality for every service.
