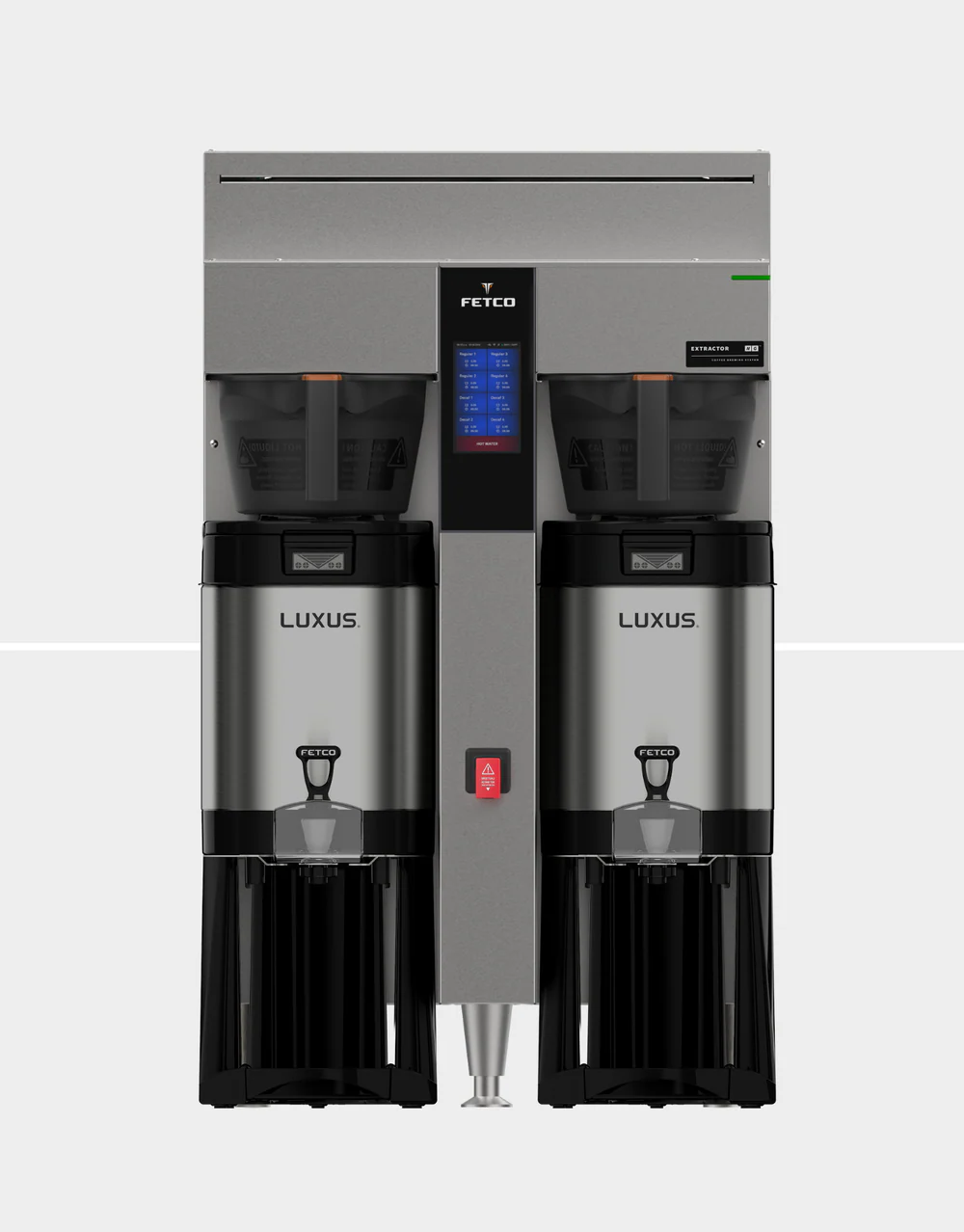

Fetco CBS-2252 NG Twin Station Coffee Brewer – 1.5G Metal Brew Basket

The Fetco CBS-2252 NG (E2252US-UB230-MA110) is a high-capacity twin station coffee brewer engineered for medium- to large-sized venues such as banquet halls, cafeterias, and restaurants. With two brewing stations and a 1.5-gallon metal brew basket at each, this model is designed for efficient, high-volume batch brewing, delivering consistent, flavorful coffee throughout the busiest service periods. The advanced Extractor® brewing system ensures optimal extraction and legendary reliability for every batch brewed.

This brewer features a user-friendly LED touchscreen interface for intuitive programming and operation. The deep metal brew baskets provide excellent heat retention and durability, while the cascading spray dome ensures even water distribution for maximum flavor extraction. Safety is enhanced with brew basket sensors and locks, preventing operation unless baskets are properly inserted. The LED status bar and brew status indicator light provide clear feedback on the brewing process, and ECO mode helps conserve energy during idle times.

Built for durability and ease of maintenance, the CBS-2252 NG includes a laser-welded tank, a manual hot water faucet for tea and other hot beverages, and a USB plug-in for recipe management and software updates. Its compact footprint and automatic water connection make integration into busy beverage stations straightforward. Certified by UL and NSF, this brewer meets rigorous standards for commercial safety and quality.

Key Features

• Twin station design for simultaneous high-volume brewing
• LED touchscreen interface for intuitive programming
• Extractor® brewing system for consistent, high-quality results
• Metal brew baskets with deep bed design and thermal insulation
• Cascading spray dome for even water distribution
• Brew basket sensors and locks for safety
• LED status bar and brew status indicator light
• Manual hot water faucet for tea and other beverages
• ECO mode for energy efficiency
• USB plug-in for recipe management and software updates
• Laser-welded tank for durability
• Removable electrical lattice for easy maintenance

Technical Specifications

• Model: E2252US-UB230-MA110 (CBS-2252 NG Series)
• Brew Capacity: 1.5 gallons per station (up to 481 8oz cups/hour)
• Tank Capacity: 10.48 gallons (39.67 liters)
• Dimensions (W x D x H): 21.88" x 22.5" x 36.88"
• Shipping Weight: 77 lbs (35 kg)
• Voltage: 208-240V, 2 x 3.0 kW or 3 x 3.0 kW, Single or Three Phase, 2+G / 3+G
• Max Amp Draw: 25.5 or 22.2
• Connection: Terminal Block (no cord included)
• Water Connection: 3/8" male flare, automatic fill
• Water Pressure Requirement: 20-75 psig
• Minimum Flow Rate: 1.5 gpm
• Filter Size: 16" x 6"
• Certifications: UL, NSF

What’s Included

• Fetco CBS-2252 NG Twin Station Coffee Brewer
• Two metal brew baskets
• Brewer legs
• 3/8" male flare fitting adapter

Warranty

Circuit Boards: 3 years parts, 1 year labor
Electromechanical Parts: 2 years parts, 1 year labor
All Other Parts: 1 year parts and labor
Accessories and Dispensers: 1 year parts only
Support: Contact Fetco for warranty claims and service.

This brewer provides dependable, high-volume coffee service and consistent quality for the most demanding commercial operations.
